Please note we have suspended sales to destinations outside of the UK from the Uniseal Shop website due to postal and customs issues which have increased our operating costs. We still sell Uniseals to Europe on eBay. Orders placed on this site from outside of the UK will be refunded less Paypal transaction costs.

Magnify 1/2 inch Uniseal photo
Click to enlarge

1/2" inch Uniseal U050
Ask A Question
Tank connector, bulkhead for Hydroponics, Aquaponics, Fish Ponds

Free Postage in the UK. Target delivery - three days.

Ideal for 1/2" pressure pipe. Often used in Dutch bucket Hydroponic systems. Can be used to connect a drain pipe to high level plant containers i.e. tall planters from the soil container down to ground level, sometimes inside the planter. I have used this Uniseal to connect 19mm reinforced hose - works perfectly.

Pipe O.D. - 0.840" - 21mm
Hole Size - 1 1/4" - 1.25" - 32mm

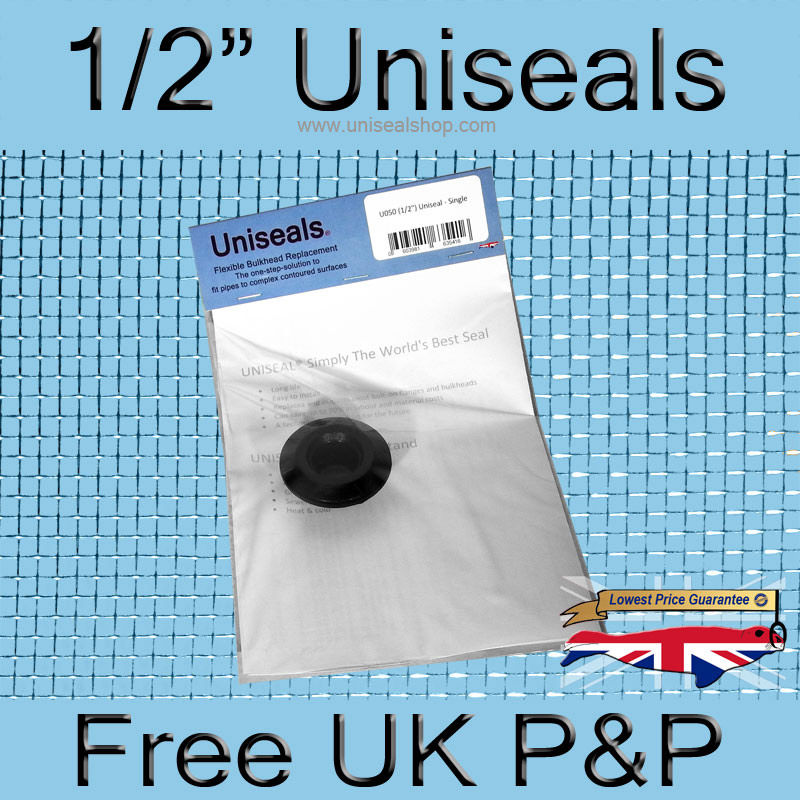

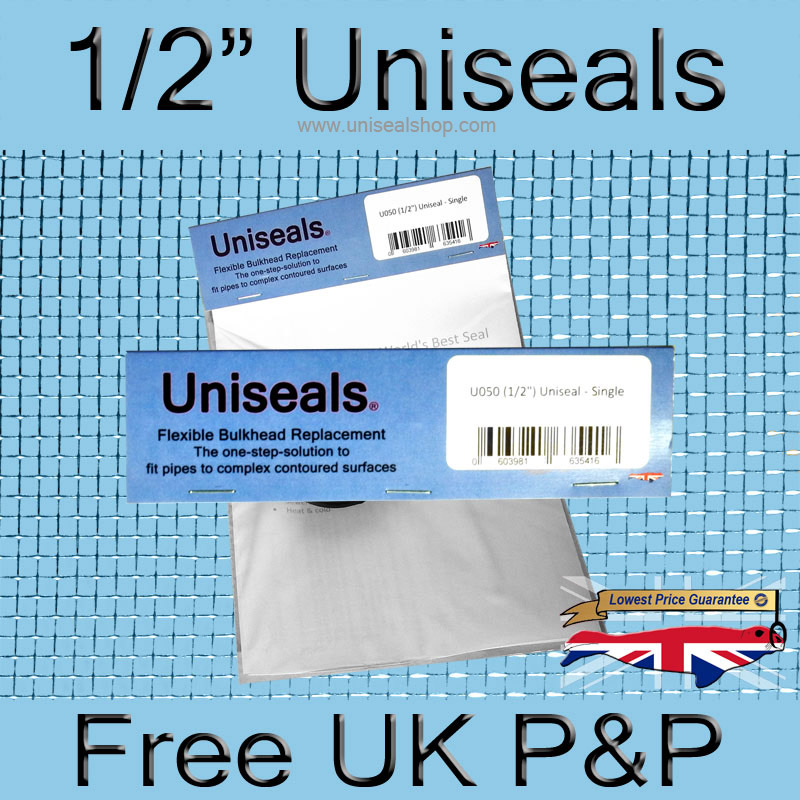

Magnify 1/2 inch Uniseal photo U050-UK-Uniseal-Single.jpg Magnify 1/2 inch Uniseal photo U050-UK-Uniseal-SinglePackTop.jpg

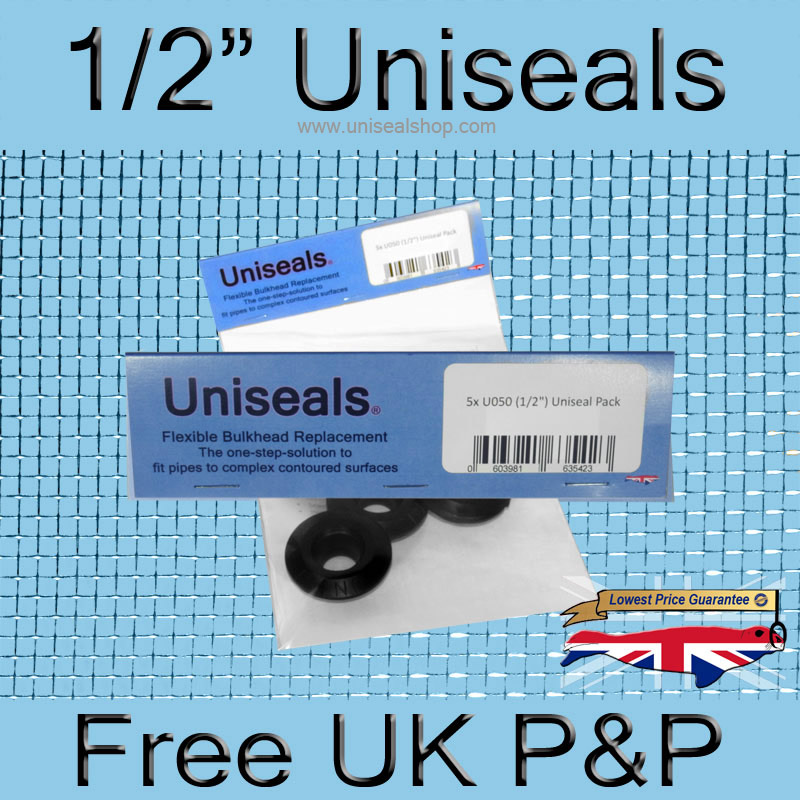

Magnify 1/2 inch Uniseal photo U050-UK-Uniseal-5-Pack.jpg Magnify 1/2 inch Uniseal photo U050-UK-Uniseal-5-PackTop.jpg

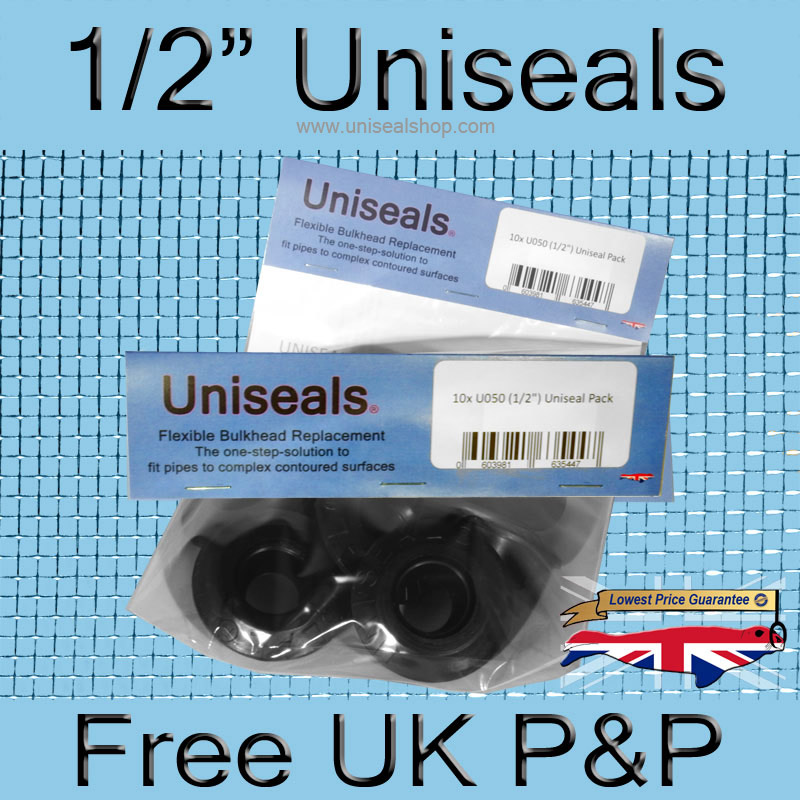

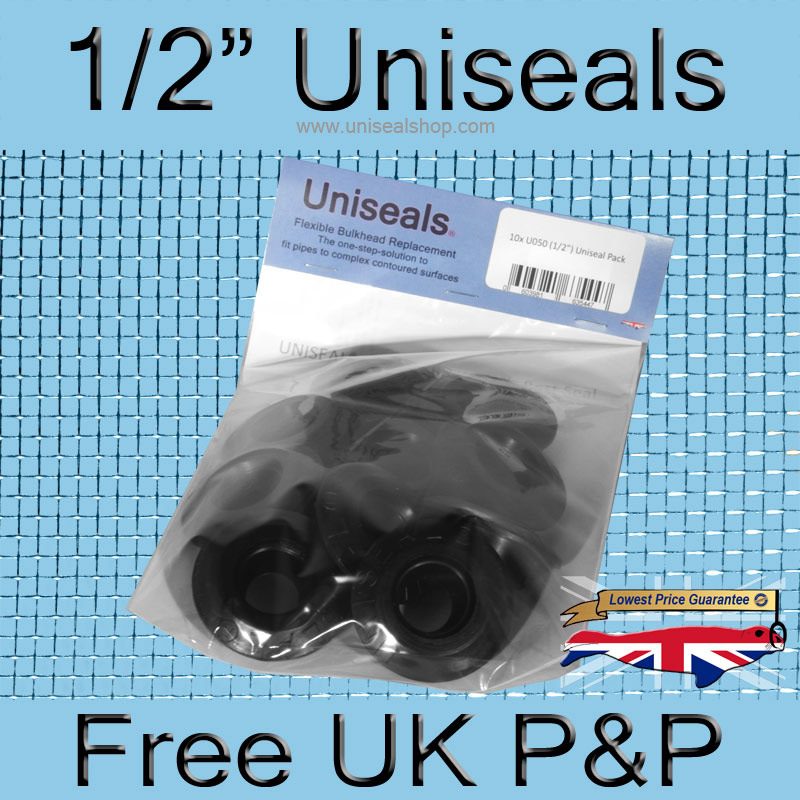

Magnify 1/2 inch Uniseal photo U050-UK-Uniseal-10-Pack.jpg Magnify 1/2 inch Uniseal photo U050-UK-Uniseal-10-PackTop.jpg

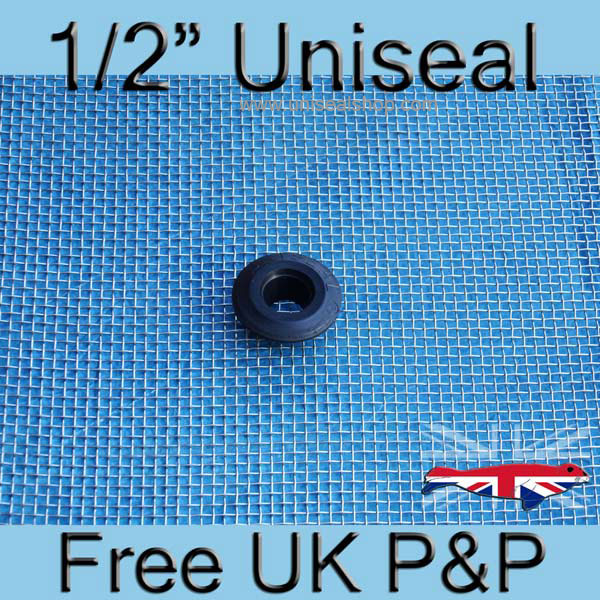

Magnify 1/2 inch Uniseal photo Half-Inch-Uniseal.jpg
Zoom
1/2 inch Uniseal

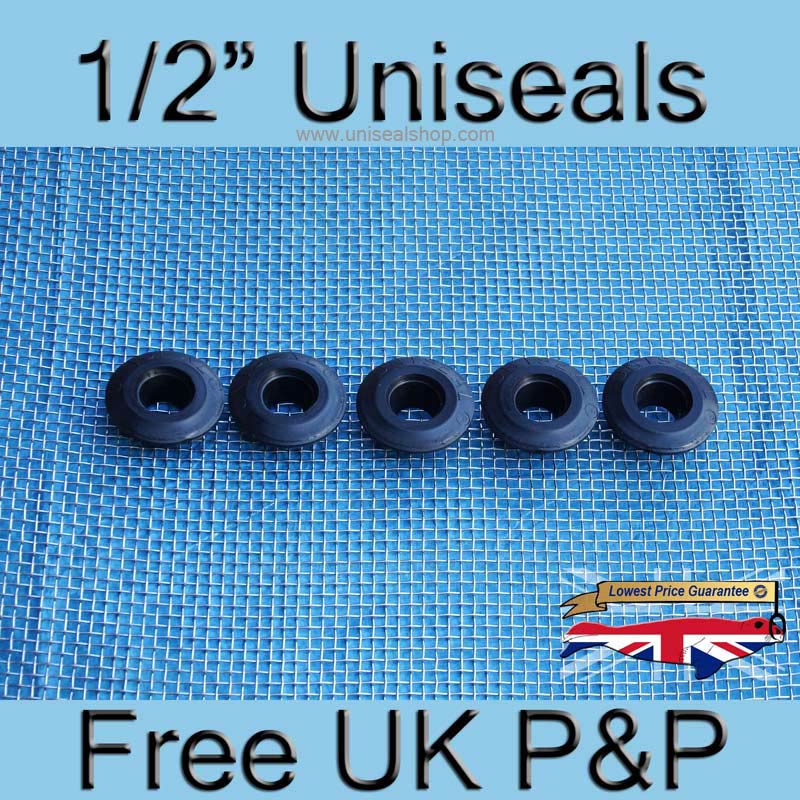

  Magnify 1/2 inch Uniseal photo 5xhalf-Inch-Uniseals.jpg
Zoom
1/2 inch Uniseal

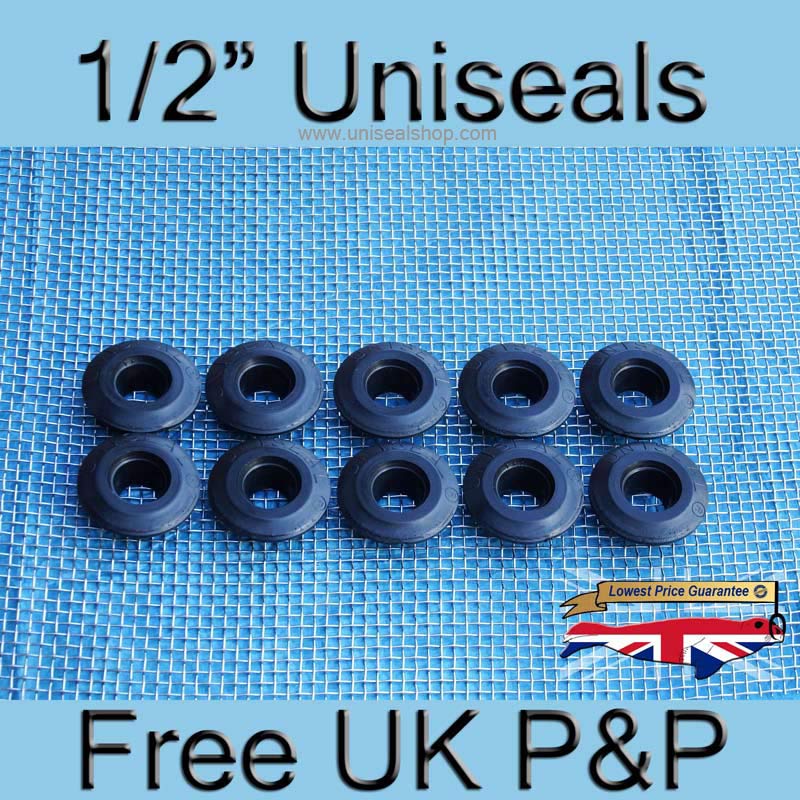

  Magnify 1/2 inch Uniseal photo 10xhalf-Inch-Uniseals.jpg
Zoom
1/2 inch Uniseal

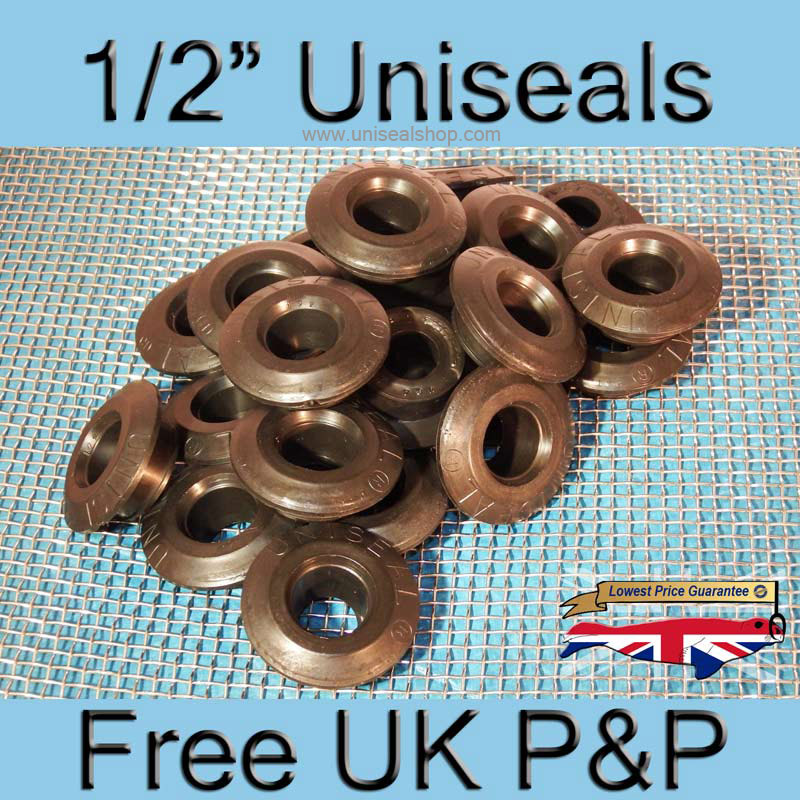

  Magnify 1/2 inch Uniseal photo 20x1_2-Inch-Uniseals.jpg
Zoom
1/2 inch Uniseal

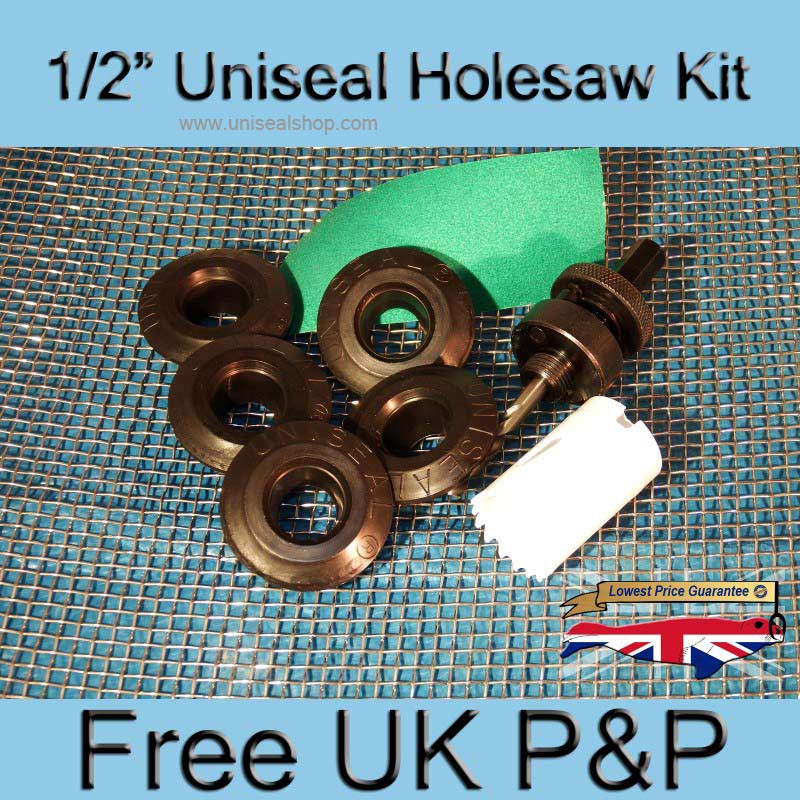

  Magnify 1/2 inch Uniseal photo 5xUniseal-Holesaw-Kit-One-Half.jpg
Zoom
1/2 inch Uniseal

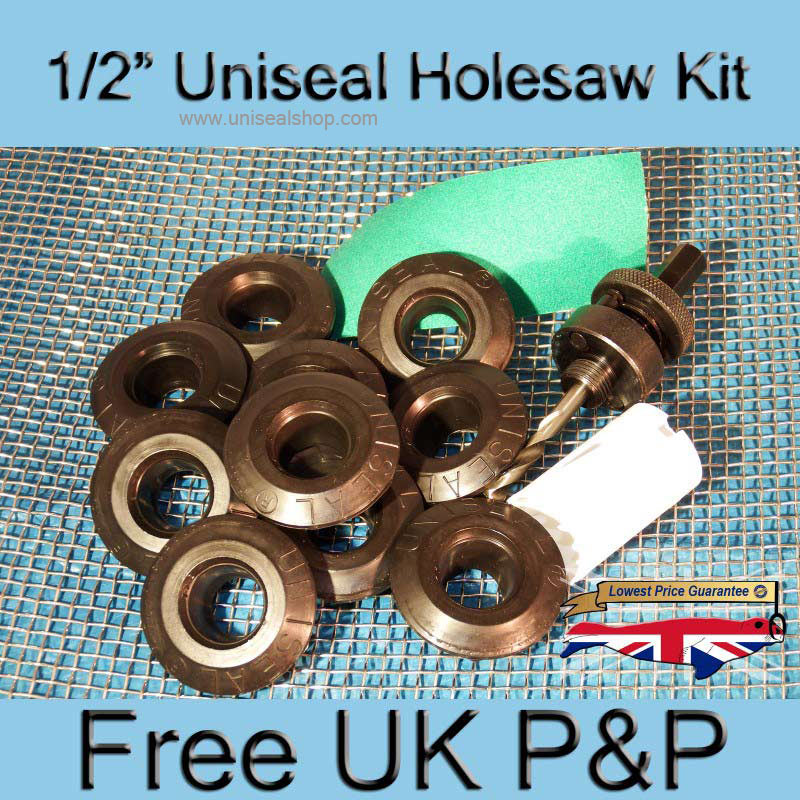

  Magnify 1/2 inch Uniseal photo 10xUniseal-Holesaw-Kit-One-Half-inch.jpg
Zoom
1/2 inch Uniseal

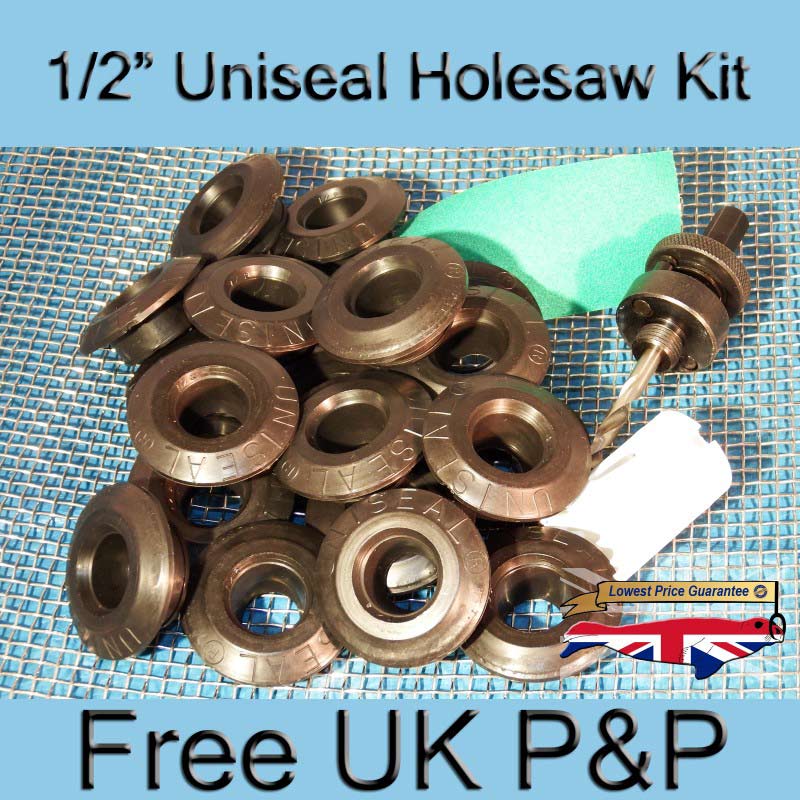

  Magnify 1/2 inch Uniseal photo 20xUniseal-Holesaw-Kit-One-Half.jpg
Zoom
1/2 inch Uniseal

1 Uniseal   5 Uniseals   10 Uniseals   20 Uniseals   5 Uniseal
Holesaw Kit
  10 Uniseal
Holesaw Kit
  20 Uniseal
Holesaw Kit

£4.27   £17.49
  £31.34
  £54.99
  £27.49
  £41.60
  £66.30
















Not Confident buying from this site!
All our payments are taken through a secure PayPal server with Paypal Buyer Protection

We also sell Uniseals on eBay.co.uk Here
And
We also sell Uniseals on Amazon.co.uk Here


DuPont Uniseals® from the Uniseal Shop - In the UK the price you see is the price you pay, no extra postage (that is included in the price), no import duties, no import disbursement fees, no extra VAT. In the rest of Europe you may be asked to pay import duties at a rate set by your own government. We use these ourselves and have invested in the idea of Uniseals® and imported directly from the USA, all fees and taxes are paid. We operate as a UK business and happily export outside of the UK. To purchase in the UK please use the UK Uniseal pages where prices are marked in UK Pounds, from Europe please use the EU Uniseal pages where prices are marked in Euros. We sell all standard sizes of Uniseal® on this web site and also sell packs of five and ten Uniseals® at further discounted prices. We also sell Uniseals® on Ebay.co.uk as Unisealshop and Seals4u here.

If you would like to purchase Uniseals® for delivery outside of the UK or Europe email me for postage costs.

We aim to be the least cost option for fast delivery of all standard Uniseal® sizes up to 4 inches to your door in the UK so if you find DuPont Uniseals® advertised by any business at a lower UK delivered cost elsewhere then please let us know. We operate a Lowest Price Guarantee in the UK - Simply - If you find a Uniseal pack price that is lower from another online business retail store, we will match the price. This of course means that we are still very competitive in the European marketplace.

There are other Uniseals available in different sizes and colors. If you wish to purchase these then get in touch with us here.

DuPont Alcryn Uniseals® - connect pipes to tanks without bulky bulheads, tank connectors, nuts and bolts, "O" rings or messy silicone to fill the gaps and using only one part.

Uniseal® products replace traditional plumbing hardware with a single injection moulded unit requiring no component parts. They were designed by Dupont to solve many of the issues of pipe to tank connections. For many industries pipe to tank seals are traditionally among the most complex connections to manufacture. Traditional seals require multiple parts such as, rigid flanges, bolts, washers, o-rings, along with long assembly times and high production costs for businesses.

The DuPont developed Alcryn® is the key to the liquid-tight seal. When the pipe is pushed through the rubber-like Uniseal® from the outside, the inside Alcryn® wall becomes thin enough to allow the pipe to squeeze through and then forms a liquid-tight seal. The coefficient of friction with the plastic pipe is higher using a Uniseal® than any other material which allows it to create a better liquid tight seal.

Uniseals® will connect pipes to complex contoured surfaces without deforming the tank and are compatible with both water and oil based materials.

Standard Uniseals® are made to fit ABS, PVC and steel pipes from 3/16" (5mm) to 6" (150mm) through tank/vessel wall thickness of 1/8" (3mm) to 1/2" (13mm).

The greatest assets to Uniseal® products are that they have a quicker and easier installation process and pipes can be removed and replaced at a later time.

There is no requirement to cut a pipe exactly to length to fit into a bulkhead, the pipe passes straight through the wall of the tank, whether it is a flat or curved surface, surrounded by the Uniseal® and no solvent welding is required. There is some leeway on the angle that the pipe passes through the Uniseal® (up to 15 degrees) so unlike normal bulkheads some building tolerance can be applied.

The effort is worth it, pipes and Uniseals® can be removed and with care re-used time and again. No more having to cut solvent welded fittings from pipes or having to fit expensive rubber boots due to design changes or mistakes. Want to change the design of your entry point into your vessel, simply leave the Uniseal® in place, leave a short length of pipe and cap it off. Uniseals® are also ideal for a hydroponic bucket system as with some care they are re-usable.

Some interesting Uniseal testing. This time by an informed Reef Tank hobbyist.

Uniseal® applications
Koi pond filter systems
Koi quarantine tanks
Air line introduction into tanks
Fish pond filtration
Aquaponics reservoir and water systems
Hydroponics reservoir and water systems
Aquariums with external filters
Reef aquarium systems
Rainwater collection systems
Connecting IBC containers
Connecting blue barrels
Connecting water barrels
Yacht and motorboat chandlery
House filtration systems
Plumbing systems
Drainage systems
And more........

Only one tool is required to achieve a watertight seal - a holesaw.

Uniseal® Fitting Instructions

1Cut a hole to the correct size using a holesaw. A wee tip here - run your holesaw as slowly as is possible, the bigger the holesaw the slower you want it revolving. Don't burn out the holesaw or melt your plastic vessel.
2Ensure there is no swarf around the hole. A fine sandpaper will remove excess.
3Insert the Uniseal® into the hole from the same direction that you intend to insert the pipe.
4Ensure that your pipe has a clean cut end. Chamfering the end of the pipe helps when it comes to insertion.
5Lubricate the outside of the end of the pipe with soap/washing up liquid and then push the pipe through the wide side of the Uniseal® and into the tank. On larger pipes silicone lubricant instead of soap applied to the pipe and Uniseal® further helps ease insertion.
6The pipe can be moved backwards and forwards to achieve the correct position.
7Job done!

Uniseal® Installation Tips

Some larger diameter pipes may require more force to insert them through a Uniseal®.

    Ensure those pipes have a good chamfer on the end to be inserted.
    Silicon pipe lubricant spray will also create less friction between the pipe and the Uniseal®.
    Rocking the pipe gently from side to side when applying pressure will also aid insertion.
    Use a block of wood to push the pipe through the Uniseal®.
    Just prior to inserting the Uniseal® heat it by immersing in hot water for a minute.
    For particularly stubborn installations use a ratchet strap around the vessel and the end of the pipe you would like to insert. Slowly ratchet the pipe through the Uniseal, tap the free end of the pipe with a dead blow hammer on a piece of wood.

There are a few hints and tips on the following videos which some people use to insert their Uniseals®.

YouTube Uniseal® Installation Videos

AEM Easy Drum 22 - Uniseal Mod 1

AEM Easy Drum 22 Uniseal Mod 2

When to use a Uniseal Vs a Bulkhead

How to Install a Uniseal Fitting

How to use Uniseals with thin walled pipe in the Aquaponic build

Aquaponic Uniseal installation How-to

UniSeal 1.5 inch hole in 5 Gallon Bucket


Uniseal® Holesaw sizes

Uniseal® Pipe and Holesaw Size Table

Uniseal®
Part No
Uniseal® Size
Sch 40 Pipe I.D.
  Pipe O.D. Size *3
  Holesaw Size
Required
  Available Metric
Holesaws
Water Flow
Per Minute
  Imperial Metric   Imp Metric   Imp Metric
U018 3/16" 4.75mm   0.250" 6mm   0.315" 8mm *1 8mm drill bit
U025 1/4" 6.5mm   0.375" 9.5mm   0.5" 12.7mm *2 13mm drill bit
U0312 5/16" 8mm   0.40" 10.5mm   0.5" 12.7mm *2 13mm drill bit
U038 3/8" 9.6mm   0.675" 17mm   1.0" 25.4mm   25mm holesaw
U050 1/2" 12.7mm   0.84" 21mm   1.25" 31.7mm *2 32mm holesaw  32 litres
U075 3/4" 19.2mm   1.050" 27mm   1.25" 31.7mm *2 32mm holesaw  50 litres
U100 1" 25.4mm   1.315" 33mm   1.75" 44.4mm   44mm holesaw  73 litres
U125 1 1/4" 32mm   1.66" 42mm   2" 50.8mm   51mm holesaw  115 litres
U150 1 1/2" 38mm   1.9" 48mm   2.5" 63.5mm   64mm holesaw  160 litres
U200 2" 51mm   2.375" 60mm   3" 76.2mm   76mm holesaw  250 litres
U275 2 3/4" 70mm   2.913" 74mm   4" 101.6mm *2 102mm holesaw  400 litres
U300 3" 76.2mm   3.5" 89mm   4" 101.6mm *2 102mm holesaw  635 litres
U400 4" 102mm   4.5" 114mm   5" 127mm *2 127mm holesaw 1100 litres
U400-SDR35 4" 102mm   4.33" 110mm   5" 127mm *2 127mm holesaw 1100 litres

 *1 Note 1 - Many websites show the required hole size for the 3/16 inch Uniseal as 10mm - it isn't and this would be realised by anybody who has fitted them. The actual Uniseal hole size for a 3/16" Uniseal required is 8 mm and can be created using a (sharp) drill bit.

*2 Note 2 - Uniseals U025 and U0312, Uniseals U050 and U075, Uniseals U275 and U300, Uniseals U400 and U400-SDR35 require the same sizes of holes. The difference is made up in the thickness of the Alcryn rubber. Uniseals with the same hole size are interchangeable, handy if you have the smaller size and want to increase the flow.

*3 Note 3 - Always measure the Outside Diameter (O.D.) of your pipe. This is the most important size to match into the Pipe O.D. hole size of the Uniseal to create your seal.

Water Flow Per Minute through associated pipework is a rough calculation and assumes gravity feed and low pressure systems.

Pipe I.D. - the Inside Diameter or bore of a pipe and how larger pipe size is denoted e.g. a 3 inch pipe has an inside diameter of 3 inches. Smaller pipes and tubes e.g. 6mm flexible PVC tube are denoted by their outside diameter (just to confuse things a little).

Pipe O.D. - The Outside Diameter of a pipe. This can vary dependant upon pipe type, construction, and manufacturer. An example of this is PVC/ABS pressure pipe which can have a thicker wall construction when the class number (pressure rating) increases. Makes sense when you think about it - higher pressure rating so a thicker wall in the pipe.

How do you determine what size of pipe you have and if it is suitable - Original Uniseals are ONLY made in Imperial sizes in the U.S.A. to suit their Schedule 40 pipe standards. The simplest thing to do is to measure accurately across the end of the pipe including the pipe wall thickness and match your Pipe O.D. to the table above. Uniseals will work perfectly on any pipe of the right O.D. size. Larger Uniseals have a tolerance of up to 2mm, however if your vessel is not pressurised you will get away with a little more. Some Uniseals fit into the same holesize and so are interchangeable e.g. U275 Uniseals can be directly replaced with U300 Uniseals.

Uniseals for Metric Pipe Sizes - Metric pipe sizes are denoted by the outside diameter (O.D.) of the pipe. An example of this is is a 75mm metric pipe (O.D.) which has an internal diameter (bore) of around 67.8mm. Some metric pipes have a near equivalence in size to the Imperial sized Uniseals so the 75mm metric pipe would fit into a Uniseal U275 for example. To check other metric sized pipes use the Pipe O.D. from the table above.

If you are using standard metric sized household pipes (popular in Hydroponics) the walls are thinner than pressure pipe. The sizes below will fit but check the Outside Diameter of your pipe. Do not assume that the name of the pipe is the O.D. size of the pipe.

The table below indicates which Uniseals work well with metric sized pipe O.D's.

Metric Uniseal® Pipe and Holesaw Size Table

Nominal
Pipe
Size
*3
  Uniseal
Fits Pipe
O.D.
  Uniseal®
Part No
Uniseal® Size
Nominal Pipe I.D.
  Required
Holesaw Size
  Water
Flow per
Minute
Metric   Metric     Imperial  Metric    Metric
 6mm   6mm   U018 3/16" 4.75mm   8mm drill bit *1
10mm   10.5mm   U0312 5/16" 8mm   13mm drill bit *2
20mm   21mm   U050 1/2" 12.7mm   32mm holesaw *2  32 litres
25mm   27mm   U075 3/4" 19.2mm   32mm holesaw *2  50 litres
32mm   33mm   U100 1" 25.4mm   44mm holesaw    73 litres
40mm   42mm   U125 1 1/4" 32mm   51mm holesaw    115 litres
60mm   60mm   U200 2" (2.0") 51mm   76mm holesaw    250 litres
75mm   75mm   U275 2 3/4" 70mm   102mm holesaw *2  400 litres

 *1 Note 1 - Many websites show the required hole size for the 3/16 inch Uniseal as 10mm - it isn't and this would be realised by anybody who has fitted them. The actual Uniseal hole size for a 3/16" Uniseal required is 8 mm and can be created using a (sharp) drill bit.

*2 Note 2 - Although our full range is not shown here Uniseals U025 and U0312, Uniseals U050 and U075, Uniseals U275 and U300, Uniseals U400 and U400-SDR35 require the same sizes of holes. The difference is made up in the thickness of the Alcryn rubber. Uniseals with the same hole size are interchangeable, handy if you have the smaller size and want to increase the flow.

Uniseals suited to Metric pipe sizes - Metric Uniseals

Standard Pipe Sizes

Pipes come in different sizes. The outside diameter of your pipe can be checked out from this website www.pipestock.com/ who sell different classes (pressure rating) of pipe in different materials. Don't get overly hung up on your pipe size unless you intend to pressurise your tank or vessel, Uniseals® have a little tolerance of around 2mm on larger diameter pipes. The main criteria is that your pipe fits tightly through the Uniseal®.

Some Uniseals in situ. This is from a DIY blue barrel filter system on a fish pond.

4 inch Uniseal in situ 3 inch Uniseal in situ 3 inch Uniseal in situ 2 Pipe Uniseal Testpiece
Uniseal inserted Inserting 3/4 pipe into Uniseal in situ Inserting 3/4 pipe into Uniseal in situ Pipe inserted in situ
Uniseal installation complete Uniseal installation completed Uniseal pipe chamfered edge Uniseal Five Seals logo
