The Uniseal Shop sell DuPont Uniseals in the UK and Europe, a fantastic pipe to tank seal product that speaks for itself and takes the place of bulkhead tank connectors. The Uniseal Shop sells only one product, the DuPont Alcryn Uniseal, and by importing in bulk are able to keep the cost of Uniseals down to an affordable level in the UK and the EU. Stock sizes and quantities of Uniseals at the moment include every size up to 4" including the sought after 4" SDR-35.

Uniseals priced in Euros include the cost of European postage from our base in the UK across the whole of mainland Europe not just EU members states. So if you are in Europe buy your Uniseals online here.

If you have a question you would like to ask about Uniseals then please do not hesitate to contact The Uniseal Shop. We have a Uniseal FAQ's page here which would probably answer your question.

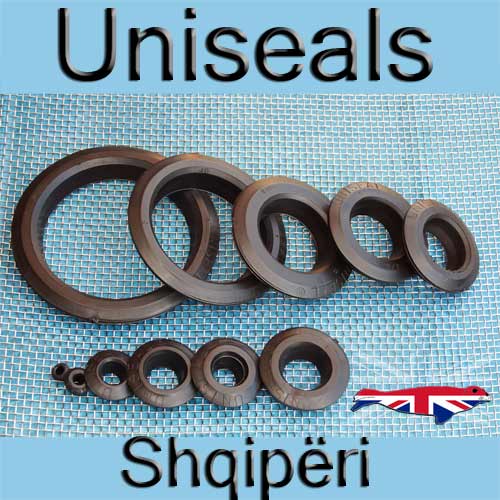

Uniseals in Albania Uniseals Shqipëri

Mirë se vini në faqet e shitjeve evropiane të Uniseal Shop. Prej këtu në Britani të Madhe ne i dërgojmë Uniseals anembanë botës. Unë personalisht nuk flas ndonjë gjuhë tjetër përveç anglisht por uniseals flasin për veten e tyre dhe me ndihmën e përkthyesit Google ne kemi punuar me njerëz në shumë gjuhë.

Nëse dëshironi të kuptoni se çfarë do të thotë përdorimi i faqes, përdor Google Translate në të majtën e faqes. Nëse keni nevojë të dini më shumë, atëherë ju lutemi na kontaktoni me email.

Uniseals tona evropiane kanë çmim në euro dhe përfshijnë koston e postës dhe paketimit kështu që ajo që shihni është ajo që ju paguani.

Uniseals Shqipëri Price List

3/16 inch Shqipëri Uniseal Image

3/16 inch Uniseals For Sale EU
Click to buy
3/16" inch Uniseal U018 Shqipëri
Ask A Question
Tank connectors for Hydroponics Aquaponics. Excellent as a Hydroponic Grommet.

Pipe Outside Diameter - 0.250" - 6mm
Uniseals
Quantity 1 Uniseal € 3.50
Quantity 5 Uniseals € 7.00 Save 60.0%
Quantity 10 Uniseals € 10.00 Save 71.4%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 12.50
Quantity 10 & Holesaw Kit € 20.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Ideal for use with PVC 6 mm OD tubing e.g. airline into vessels. Used with NFT Hydroponic Microtube. Two inserted into the side of a vessel with an interconnecting PVC tube can be used as a sight glass to determine water level inside the vessel.



1/4 inch Shqipëri Uniseal Image

1/4 inch Uniseals For Sale EU
Click to buy
1/4" inch Uniseal U025 Shqipëri
Ask A Question
Tank connectors for Hydroponics Aquaponics. Excellent as a Hydroponic Grommet.

Pipe Outside Diameter - 0.312" - 8mm
Uniseals
Quantity 1 Uniseal € 4.00
Quantity 5 Uniseals € 12.00 Save 40.0%
Quantity 10 Uniseals € 18.00 Save 55.0%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 14.00
Quantity 10 & Holesaw Kit € 22.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Ideal for 8mm PVC tubing.



5/16 inch Shqipëri Uniseal Image

5/16 inch Uniseals For Sale EU
Click to buy
5/16" inch Uniseal U0312 Shqipëri
Ask A Question
Tank connector, bulkhead for Hydroponics, Aquaponics. Excellent as a Hydroponic Grommet.

Pipe Outside Diameter - 0.400" - 10.5mm
Uniseals
Quantity 1 Uniseal € 4.25
Quantity 5 Uniseals € 14.00 Save 34.1%
Quantity 10 Uniseals € 24.00 Save 43.5%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 19.00
Quantity 10 & Holesaw Kit € 29.99

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Ideal for 10/11 mm reinforced hose, often used as airline around fishponds. The 10/11mm hose has an inside diameter of 8mm which fits standard air pumps. The U0312 Uniseal allows waterproof access into drums, tanks and filters.



3/8 inch Shqipëri Uniseal Image

3/8 inch Uniseals For Sale EU
Click to buy
3/8" inch Uniseal U038 Shqipëri
Ask A Question
Tank connector, bulkhead for Hydroponics, Aquaponics. Excellent as a Hydroponic Grommet.

Pipe Outside Diameter - 0.675" - 17mm
Uniseals
Quantity 1 Uniseal € 4.50
Quantity 5 Uniseals € 18.00 Save 20.0%
Quantity 10 Uniseals € 31.00 Save 31.1%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 24.00
Quantity 10 & Holesaw Kit € 37.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Excellent for 3/8" pipework. We sell a number of these for smaller hydroponics set ups.



1/2 inch Shqipëri Uniseal Image

1/2 inch Uniseals For Sale EU
Click to buy
1/2" inch Uniseal U050 Shqipëri
Ask A Question
Tank connector, bulkhead for Hydroponics, Aquaponics, Fish Ponds

Pipe Outside Diameter - 0.840" - 21mm
Uniseals
Quantity 1 Uniseal € 5.00
Quantity 5 Uniseals € 20.00 Save 20.0%
Quantity 10 Uniseals € 35.00 Save 30.0%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 31.00
Quantity 10 & Holesaw Kit € 46.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Ideal for 1/2" pressure pipe. Often used in Dutch bucket Hydroponic systems. Can be used to connect a drain pipe to high level plant containers i.e. tall planters from the soil container down to ground level, sometimes inside the planter. I have used this Uniseal to connect 19mm reinforced hose - works perfectly.



3/4 inch Shqipëri Uniseal Image

3/4 inch Uniseals For Sale EU
Click to buy
3/4" inch Uniseal U075 Shqipëri
Ask A Question
Bulkhead Koi Tank Connectors for hydroponics aquaponics Koi ponds

Pipe Outside Diameter - 1.050'' - 27mm
Uniseals
Quantity 1 Uniseal € 6.00
Quantity 5 Uniseals € 24.00 Save 20.0%
Quantity 10 Uniseals € 35.00 Save 41.7%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 36.00
Quantity 10 & Holesaw Kit € 47.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Du Pont 3/4 inch Uniseal. Uniseals are available in standard pipe sizes from 3/16" all the way up to 6". Achieves an excellent seal on 3/4" pressure pipe. Often used in Dutch bucket Hydroponic Systems as hydroponic grommets.



1 inch Shqipëri Uniseal Image

1 inch Uniseals For Sale EU
Click to buy
1" inch Uniseal U100 Shqipëri
Ask A Question
Bulkhead Koi Tank Connectors for hydroponics aquaponics Koi ponds

Pipe Outside Diameter - 1.315'' - 33mm
Uniseals
Quantity 1 Uniseal € 7.00
Quantity 5 Uniseals € 27.00 Save 22.9%
Quantity 10 Uniseals € 35.00 Save 50.0%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 41.00
Quantity 10 & Holesaw Kit € 48.00

Postage and packing is included in the price. Uniseals will be despatched before the end of the next working day using Royal Mail First Class post.

Used in Koi  and fish pond filtration systems. Hydroponics and aquaponics. Achieves an excellent seal  on 1" pressure pipe. Often used in Dutch Bucket Hydroponic Systems. Uniseal tank connectors can be used in most water transportation systems.



1 1/4 inch Shqipëri Uniseal Image

1 1/4 inch Uniseals For Sale EU
Click to buy
1 1/4" inch Uniseal U125 Shqipëri
Ask A Question
Tank connector, bulkhead for Hydroponics, Aquaponics, Fish Ponds

Pipe Outside Diameter - 1.660" - 42mm
Uniseals
Quantity 1 Uniseal € 7.50
Quantity 5 Uniseals € 28.00 Save 25.3%
Quantity 10 Uniseals € 42.00 Save 44.0%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 44.00
Quantity 10 & Holesaw Kit € 57.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Often used in Hydroponics, good for 40mm standard household waste pipe which is thin walled. Best to use a push fit or compression fit pipe. Solvent weld (glued) 40mm household pipe has an Outside Diameter of 43mm which is a tough fit.



1 1/2 inch Shqipëri Uniseal Image

1 1/2 inch Uniseals For Sale EU
Click to buy
1 1/2" inch Uniseal U150 Shqipëri
Ask A Question
Bulkhead Koi Tank Connectors for hydroponics aquaponics Koi ponds

Pipe Outside Diameter - 1.900" - 48mm
Uniseals
Quantity 1 Uniseal € 8.00
Quantity 5 Uniseals € 32.00 Save 20.0%
Quantity 10 Uniseals € 43.00 Save 46.3%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 49.00
Quantity 10 & Holesaw Kit € 60.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Ideal for 1 1/2" inch pressure pipe. For 40mm household pipe see 1 1/4" U125 Uniseal.



2 inch Shqipëri Uniseal Image

2 inch Uniseals For Sale EU
Click to buy
2" inch Uniseal U200 Shqipëri
Ask A Question
Bulkhead Koi Tank Connectors for hydroponics aquaponics Koi ponds

Pipe Outside Diameter - 2.375" - 60mm
Uniseals
Quantity 1 Uniseal € 9.50
Quantity 5 Uniseals € 38.00 Save 20.0%
Quantity 10 Uniseals € 58.00 Save 38.9%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 57.00
Quantity 10 & Holesaw Kit € 77.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Used in Koi and fish pond filtration systems. Achieves an excellent seal on 2" pressure pipe or any pipe with and outside diameter of 60mm.



2.75 inch Shqipëri Uniseal Image

2.75 inch Uniseals For Sale EU
Click to buy
2 3/4" inch Uniseal U275 Shqipëri
Ask A Question
Tank connector, bulkhead for Hydroponics, Aquaponics. Excellent as a Hydroponic Grommet.

Pipe Outside Diameter - 2.913" - 75mm
Uniseals
Quantity 1 Uniseal € 14.00
Quantity 5 Uniseals € 54.00 Save 22.9%
Quantity 10 Uniseals € 92.00 Save 34.3%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 74.00
Quantity 10 & Holesaw Kit € 112.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Ideal for metric pipe with an Outside Diameter of 75mm.



3 inch Shqipëri Uniseal Image

3 inch Uniseals For Sale EU
Click to buy
3" inch Uniseal U300 Shqipëri
Ask A Question
Bulkhead Koi Tank Connectors for hydroponics aquaponics Koi ponds

Pipe Outside Diameter - 3.500" - 89mm
Uniseals
Quantity 1 Uniseal € 13.00
Quantity 5 Uniseals € 50.00 Save 23.1%
Quantity 10 Uniseals € 82.00 Save 36.9%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 69.00
Quantity 10 & Holesaw Kit € 102.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Used in Koi and fish pond filtration systems. Particularly useful in DIY blue barrel filter setups as shown in the uniseal images at the bottom of the page.



4 inch Shqipëri Uniseal Image

4 inch Uniseals For Sale EU
Click to buy
4" inch Uniseal U400 Shqipëri
Ask A Question
Bulkhead Koi Tank Connectors for hydroponics aquaponics Koi ponds.

Pipe Outside Diameter - 4.500" - 114mm
Uniseals
Quantity 1 Uniseal € 15.00
Quantity 5 Uniseals € 60.00 Save 20.0%
Quantity 10 Uniseals € 95.00 Save 36.7%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 83.00
Quantity 10 & Holesaw Kit € 118.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

Often used to connect a pond bottom drain to part 1 of a fish pond filtration system. Uniseal bulkheads are less expensive, take less time to install and will last without failure. Not prone to failure in freezing temperatures.



4 inch-SDR35 Shqipëri Uniseal Image

4 inch-SDR35 Uniseals For Sale EU
Click to buy
4" inch Uniseal U400-SDR35 Shqipëri
Ask A Question
Bulkhead Koi Tank Connectors for hydroponics aquaponics Koi ponds. Works with underground drainage/waste pipe.

Pipe Outside Diameter - 4.330" - 110mm
Uniseals
Quantity 1 Uniseal € 16.00
Quantity 5 Uniseals € 65.00 Save 18.8%
Quantity 10 Uniseals € 109.00 Save 31.9%
Uniseal Holesaw Kits
Quantity 5 & Holesaw Kit € 90.00
Quantity 10 & Holesaw Kit € 135.00

The price you see is the price you pay, postage and packing are already included. Items will be despatched First Class Royal Mail post by the end of the next working day at the latest but normally if ordered before 1600 Hrs they will be despatched on that day.

For underground drainage pipe (orange in the UK). Often used to connect a pond bottom drain to part 1 of a fish pond filtration system. Uniseal bulkheads are less expensive, take less time to install and will last without failure even in freezing temperatures.



Magnify Hydroponic Grommets photo
Click to buy
Hydroponic Grommets - All Sizes

PayPal Acceptance Mark

DuPont Uniseals® from the Uniseal Shop - In the UK and EU the price you see is the price you pay, no extra postage (that is included in the price), no import duties, no import disbursement fees, no extra VAT. We use these ourselves and have invested in the idea of Uniseals® and imported directly from the USA, all fees and taxes are paid. We operate as a UK business and happily export outside of the UK. To purchase in the UK please use the UK Uniseal pages where prices are marked in UK Pounds, from Europe please use the EU Uniseal pages where prices are marked in Euros. We sell all standard sizes of Uniseal® on this web site and also sell packs of five and ten Uniseals® at further discounted prices. We also sell Uniseals® on Ebay.co.uk as Unisealshop and Seals4u here.

If you would like to purchase Uniseals® for delivery outside of the UK or Europe email me for postage costs.

We aim to be the least cost option for fast delivery of all standard Uniseal® sizes up to 4 inches to your door in the UK so if you find DuPont Uniseals® advertised by any business at a lower UK delivered cost elsewhere then please let us know. We operate a Lowest Price Guarantee in the UK - Simply - If you find a Uniseal pack price that is lower from another online business retail store, we will match the price. This of course means that we are still very competitive in the European marketplace.

There are other Uniseals available in different sizes and colors. If you wish to purchase these then get in touch with us here.

DuPont Alcryn Uniseals® - connect pipes to tanks without bulky bulheads, tank connectors, nuts and bolts, "O" rings or messy silicone to fill the gaps and using only one part.

Uniseal® products replace traditional plumbing hardware with a single injection moulded unit requiring no component parts. They were designed by Dupont to solve many of the issues of pipe to tank connections. For many industries pipe to tank seals are traditionally among the most complex connections to manufacture. Traditional seals require multiple parts such as, rigid flanges, bolts, washers, o-rings, along with long assembly times and high production costs for businesses.

The DuPont developed Alcryn® is the key to the liquid-tight seal. When the pipe is pushed through the rubber-like Uniseal® from the outside, the inside Alcryn® wall becomes thin enough to allow the pipe to squeeze through and then forms a liquid-tight seal. The coefficient of friction with the plastic pipe is higher using a Uniseal® than any other material which allows it to create a better liquid tight seal.

Uniseals® will connect pipes to complex contoured surfaces without deforming the tank and are compatible with both water and oil based materials.

Standard Uniseals® are made to fit ABS, PVC and steel pipes from 3/16" (5mm) to 6" (150mm) through tank/vessel wall thickness of 1/8" (3mm) to 1/2" (13mm).

The greatest assets to Uniseal® products are that they have a quicker and easier installation process and pipes can be removed and replaced at a later time.

There is no requirement to cut a pipe exactly to length to fit into a bulkhead, the pipe passes straight through the wall of the tank, whether it is a flat or curved surface, surrounded by the Uniseal® and no solvent welding is required. There is some leeway on the angle that the pipe passes through the Uniseal® (up to 15 degrees) so unlike normal bulkheads some building tolerance can be applied.

The effort is worth it, pipes and Uniseals® can be removed and with care re-used time and again. No more having to cut solvent welded fittings from pipes or having to fit expensive rubber boots due to design changes or mistakes. Want to change the design of your entry point into your vessel, simply leave the Uniseal® in place, leave a short length of pipe and cap it off. Uniseals® are also ideal for a hydroponic bucket system as with some care they are re-usable.

Some interesting Uniseal testing. This time by an informed Reef Tank hobbyist.

Uniseal® applications
Koi pond filter systems
Koi quarantine tanks
Air line introduction into tanks
Fish pond filtration
Aquaponics reservoir and water systems
Hydroponics reservoir and water systems
Aquariums with external filters
Reef aquarium systems
Rainwater collection systems
Connecting IBC containers
Connecting blue barrels
Connecting water barrels
Yacht and motorboat chandlery
House filtration systems
Plumbing systems
Drainage systems
And more........

Only one tool is required to achieve a watertight seal - a holesaw.

Uniseal® Fitting Instructions

1Cut a hole to the correct size using a holesaw. A wee tip here - run your holesaw as slowly as is possible, the bigger the holesaw the slower you want it revolving. Don't burn out the holesaw or melt your plastic vessel.
2Ensure there is no swarf around the hole. A fine sandpaper will remove excess.
3Insert the Uniseal® into the hole from the same direction that you intend to insert the pipe.
4Ensure that your pipe has a clean cut end. Chamfering the end of the pipe helps when it comes to insertion.
5Lubricate the outside of the end of the pipe with soap/washing up liquid and then push the pipe through the wide side of the Uniseal® and into the tank. On larger pipes silicone lubricant instead of soap applied to the pipe and Uniseal® further helps ease insertion.
6The pipe can be moved backwards and forwards to achieve the correct position.
7Job done!

Uniseal® Installation Tips

Some larger diameter pipes may require more force to insert them through a Uniseal®.

    Ensure those pipes have a good chamfer on the end to be inserted.
    Silicon pipe lubricant spray will also create less friction between the pipe and the Uniseal®.
    Rocking the pipe gently from side to side when applying pressure will also aid insertion.
    Use a block of wood to push the pipe through the Uniseal®.
    Just prior to inserting the Uniseal® heat it by immersing in hot water for a minute.
    For particularly stubborn installations use a ratchet strap around the vessel and the end of the pipe you would like to insert. Slowly ratchet the pipe through the Uniseal, tap the free end of the pipe with a dead blow hammer on a piece of wood.

There are a few hints and tips on the following videos which some people use to insert their Uniseals®.

YouTube Uniseal® Installation Videos

AEM Easy Drum 22 - Uniseal Mod 1

AEM Easy Drum 22 Uniseal Mod 2

When to use a Uniseal Vs a Bulkhead

How to Install a Uniseal Fitting

How to use Uniseals with thin walled pipe in the Aquaponic build

Aquaponic Uniseal installation How-to

UniSeal 1.5 inch hole in 5 Gallon Bucket


Uniseal® Holesaw sizes

Uniseal® Pipe and Holesaw Size Table

Uniseal®
Part No
Uniseal® Size
Sch 40 Pipe I.D.
  Pipe O.D. Size *3
  Holesaw Size
Required
  Available Metric
Holesaws
Water Flow
Per Minute
  Imperial Metric   Imp Metric   Imp Metric
U018 3/16" 4.75mm   0.250" 6mm   0.315" 8mm *1 8mm drill bit
U025 1/4" 6.5mm   0.375" 9.5mm   0.5" 12.7mm *2 13mm drill bit
U0312 5/16" 8mm   0.40" 10.5mm   0.5" 12.7mm *2 13mm drill bit
U038 3/8" 9.6mm   0.675" 17mm   1.0" 25.4mm   25mm holesaw
U050 1/2" 12.7mm   0.84" 21mm   1.25" 31.7mm *2 32mm holesaw  32 litres
U075 3/4" 19.2mm   1.050" 27mm   1.25" 31.7mm *2 32mm holesaw  50 litres
U100 1" 25.4mm   1.315" 33mm   1.75" 44.4mm   44mm holesaw  73 litres
U125 1 1/4" 32mm   1.66" 42mm   2" 50.8mm   51mm holesaw  115 litres
U150 1 1/2" 38mm   1.9" 48mm   2.5" 63.5mm   64mm holesaw  160 litres
U200 2" 51mm   2.375" 60mm   3" 76.2mm   76mm holesaw  250 litres
U275 2 3/4" 70mm   2.913" 74mm   4" 101.6mm *2 102mm holesaw  400 litres
U300 3" 76.2mm   3.5" 89mm   4" 101.6mm *2 102mm holesaw  635 litres
U400 4" 102mm   4.5" 114mm   5" 127mm *2 127mm holesaw 1100 litres
U400-SDR35 4" 102mm   4.33" 110mm   5" 127mm *2 127mm holesaw 1100 litres

 *1 Note 1 - Many websites show the required hole size for the 3/16 inch Uniseal as 10mm - it isn't and this would be realised by anybody who has fitted them. The actual Uniseal hole size for a 3/16" Uniseal required is 8 mm and can be created using a (sharp) drill bit.

*2 Note 2 - Uniseals U025 and U0312, Uniseals U050 and U075, Uniseals U275 and U300, Uniseals U400 and U400-SDR35 require the same sizes of holes. The difference is made up in the thickness of the Alcryn rubber. Uniseals with the same hole size are interchangeable, handy if you have the smaller size and want to increase the flow.

*3 Note 3 - Always measure the Outside Diameter (O.D.) of your pipe. This is the most important size to match into the Pipe O.D. hole size of the Uniseal to create your seal.

Water Flow Per Minute through associated pipework is a rough calculation and assumes gravity feed and low pressure systems.

Pipe I.D. - the Inside Diameter or bore of a pipe and how larger pipe size is denoted e.g. a 3 inch pipe has an inside diameter of 3 inches. Smaller pipes and tubes e.g. 6mm flexible PVC tube are denoted by their outside diameter (just to confuse things a little).

Pipe O.D. - The Outside Diameter of a pipe. This can vary dependant upon pipe type, construction, and manufacturer. An example of this is PVC/ABS pressure pipe which can have a thicker wall construction when the class number (pressure rating) increases. Makes sense when you think about it - higher pressure rating so a thicker wall in the pipe.

How do you determine what size of pipe you have and if it is suitable - Original Uniseals are ONLY made in Imperial sizes in the U.S.A. to suit their Schedule 40 pipe standards. The simplest thing to do is to measure accurately across the end of the pipe including the pipe wall thickness and match your Pipe O.D. to the table above. Uniseals will work perfectly on any pipe of the right O.D. size. Larger Uniseals have a tolerance of up to 2mm, however if your vessel is not pressurised you will get away with a little more. Some Uniseals fit into the same holesize and so are interchangeable e.g. U275 Uniseals can be directly replaced with U300 Uniseals.

Uniseals for Metric Pipe Sizes - Metric pipe sizes are denoted by the outside diameter (O.D.) of the pipe. An example of this is is a 75mm metric pipe (O.D.) which has an internal diameter (bore) of around 67.8mm. Some metric pipes have a near equivalence in size to the Imperial sized Uniseals so the 75mm metric pipe would fit into a Uniseal U275 for example. To check other metric sized pipes use the Pipe O.D. from the table above.

If you are using standard metric sized household pipes (popular in Hydroponics) the walls are thinner than pressure pipe. The sizes below will fit but check the Outside Diameter of your pipe. Do not assume that the name of the pipe is the O.D. size of the pipe.

The table below indicates which Uniseals work well with metric sized pipe O.D's.

Metric Uniseal® Pipe and Holesaw Size Table

Nominal
Pipe
Size
*3
  Uniseal
Fits Pipe
O.D.
  Uniseal®
Part No
Uniseal® Size
Nominal Pipe I.D.
  Required
Holesaw Size
  Water
Flow per
Minute
Metric   Metric     Imperial  Metric    Metric
 6mm   6mm   U018 3/16" 4.75mm   8mm drill bit *1
10mm   10.5mm   U0312 5/16" 8mm   13mm drill bit *2
20mm   21mm   U050 1/2" 12.7mm   32mm holesaw *2  32 litres
25mm   27mm   U075 3/4" 19.2mm   32mm holesaw *2  50 litres
32mm   33mm   U100 1" 25.4mm   44mm holesaw    73 litres
40mm   42mm   U125 1 1/4" 32mm   51mm holesaw    115 litres
60mm   60mm   U200 2" (2.0") 51mm   76mm holesaw    250 litres
75mm   75mm   U275 2 3/4" 70mm   102mm holesaw *2  400 litres

 *1 Note 1 - Many websites show the required hole size for the 3/16 inch Uniseal as 10mm - it isn't and this would be realised by anybody who has fitted them. The actual Uniseal hole size for a 3/16" Uniseal required is 8 mm and can be created using a (sharp) drill bit.

*2 Note 2 - Although our full range is not shown here Uniseals U025 and U0312, Uniseals U050 and U075, Uniseals U275 and U300, Uniseals U400 and U400-SDR35 require the same sizes of holes. The difference is made up in the thickness of the Alcryn rubber. Uniseals with the same hole size are interchangeable, handy if you have the smaller size and want to increase the flow.

Uniseals suited to Metric pipe sizes - Metric Uniseals

Standard Pipe Sizes

Pipes come in different sizes. The outside diameter of your pipe can be checked out from this website www.pipestock.com/ who sell different classes (pressure rating) of pipe in different materials. Don't get overly hung up on your pipe size unless you intend to pressurise your tank or vessel, Uniseals® have a little tolerance of around 2mm on larger diameter pipes. The main criteria is that your pipe fits tightly through the Uniseal®.

Some Uniseals in situ. This is from a DIY blue barrel filter system on a fish pond.

4 inch Uniseal in situ 3 inch Uniseal in situ 3 inch Uniseal in situ 2 Pipe Uniseal Testpiece
Uniseal inserted Inserting 3/4 pipe into Uniseal in situ Inserting 3/4 pipe into Uniseal in situ Pipe inserted in situ
Uniseal installation complete Uniseal installation completed Uniseal pipe chamfered edge Uniseal Five Seals logo
Uniseals Image Gallery

Uniseals Holesaw Image Gallery

EU Uniseals Image Gallery

Uniseal Logo Seal


Uniseal Applications

Uniseal Shop
Uniseal Shop
Uniseals
Uniseal Installation
Uniseal Hole size chart
Uniseal bulkhead

© Uniseal Shop Telephone: 07484 171458   |  Publication date - 08 February 2019   |  Admin  |  Email Us

Brahan Seer Business Solutions
Brahan Seer Content Managed


Custom Search
